100km LOS UAV Video Transmitter 5 Watt Long Distance UAV Video Link H.265 Video Coding
Description:
Model KP-HD50LW is our powerful full HD AV signals transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W RF power output adjustable.Support full HD 1080P(1080i) H.265 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system. Widely used in UAV,public security organs, procuratorate, court and security bureau etc.
Features:
| 2-5W rf power adjustable | COFDM modulation technology ensure the stability of signal |
| Support FULL HD quality,1080i/P@30fps; | Built-in with HDMI and CVBS inputs; |
| Provide AES128 encryption for video safety. | It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz. |
| Low delay time | H.265 video coding |
| 2k, 4k, 8k Carrier | Widely used in helicopter shooting, Live broadcast and etc… |
Transmitter parameter:
| Modulate | COFDM |
| Working voltage | DC12V |
| Working current | ≤6A@DC12V |
| RF bandwidth | 2/4/6/8MHz (adjustable) |
| Frequency | 300-900Mhz or other frequency customized |
| Output power | 2-5W adjustable |
| Video input | HDMI/SDI; CVBS |
| Data input (option) | RS232/TTL, up to 115200bps |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps |
| Video coding | MPEG-2/H.264/H265 |
| Video rate | 512Kbps-16Mbps (adjustable) |
| Encryption | AES 128 bits |
| AV input | 1Vp-p, 75Ω. Left and right channel |
| Video system | PAL/NTSC |
| Power flatness | Full band ≤1.5dB |
| CNR | ≥25dBc@48dBm |
| Second harmonic | ≥60dBc |
| CBER | <2.0E-4 |
| VBER | <1.0E-7 |
| MER | 32dB |
| Carrier | 2k 4k 8k |
| Constellation | QPSK,16QAM,64QAM (option) |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 (option) |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 (option) |
| Working Temperature | -25°C~55°C |
| Dimension | 130*100*43mm |
| Weight | 660g |
Rack-mounted type COFDM HD Video Receiver
Receiver parameter:
| Frequency | 170-900MHz, VHF&UHF |
| Bandwidth | 2/3/4/5/6/7/8MHz (option) |
| RF input level | -94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
| RF input impedance | 50Ω |
| RF input type | N type |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(adjustable) |
| FEC | 1/2,2/3,3/4,5/6,7/8(adjustable) |
| Carrier | 2k |
| Guard Interval | 1/32,1/16,1/8,1/4(adjustable) |
| Video coding | MPEG-2/H.264MP@ML |
| Screen | 4:3 16:9 |
| Video resolution | 1080P@4MHz |
| Audio output | Stereo unbalance 300/ 200mv |
| AV output | 2 Audio output + 2 Video output. SDI/HDMI/ASI |
| Working voltage | AC220V/DC12V ＜1A |
| working temperature | -20℃～+50℃ |
| Dimension | 480*260*45(1U chassis) |
| Weight | 1.5kg |

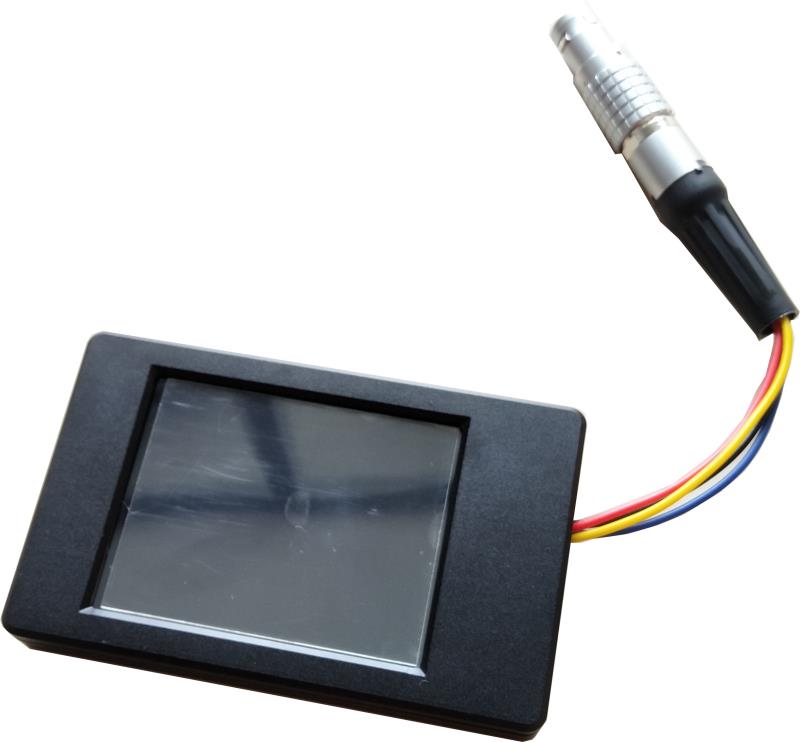

Tx Extenal User configuration:
Application:
This special designed system is for long range distance for any AV equipments, especial for UAV, UGV and has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
